KATflow 100
Standard Clamp-On Ultrasonic Transmitter

SMALL. SIMPLE. STURDY.

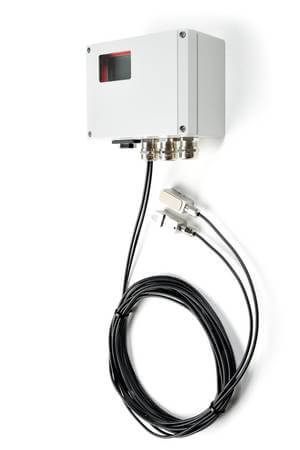

The KATflow 100 is a compact clamp-on ultrasonic flow transmitter with a robust and practical design for permanent installation and flow measurement on single pipes. The instrument offers a cost-effective option owing to its simplified specification and availability of a range of transducer types. The varied functionality and simple operation of the KATflow 100 make it the perfect product for large projects and customer specific solutions.

Pipe Diameter 10 – 3,000 mm
Mains Operated
Heat Quantity Measurement
Fixed Installation
Degree of Protection IP 66
Process Outputs

The KATflow 100 electronics are housed in a robust wall or pipe mounted aluminium enclosure and can be powered by AC or DC power supplies. In spite of its relative simplicity the KATflow 100 offers the user a wide range of input, output and communication interfaces such as RS 485, Modbus and the more traditional 4-20mA and open-collector pulse. As a special solution the KATflow 100 can be offered without local display with a hand-held programming device.

  • Low cost of ownership
  • Multiple input and output options available
  • PT100 inputs for heat quantity (thermal energy) measurement
  • Bi-directional measurement with totaliser function
  • Innovative installation wizard for quick and intuitive programming
  • Configuration can be changed to suit customer requirements
  • Pipe diameter range 10 mm to 3,000 mm
  • Temperature range for sensors -30 °C to +80 °C (-22 °F to +176 °F)
  • Weight 750 g
  • Robust IP 66 aluminium enclosure
  • Sturdy unit with LCD display and five-key keypad
  • Wall or pipe mounted

Pharmaceutical

Water for injection measurement

Measurement of sterile fluids

Clean room applications

Building Services

Installation on hot water lines

Energy flow measurement

Installation on chilled water systems

Water and Wastewater

Replacement of electromagnetic flowmeters

Drinking water and effluent measurements

Pump testing

Aircraft and Aerospace

Monitoring of hydraulic systems

Use in landing gear test benches

Measurement of specialist media

Marine and Shipbuilding

Measurement of engine cooling lines

Monitoring of sea water inlets

Heavy fuel oil measurements

General Industry

Automated process control

Large scale metering projects

Measurement of steam condensate
